Slurry Pump Spare Parts
Product Overview

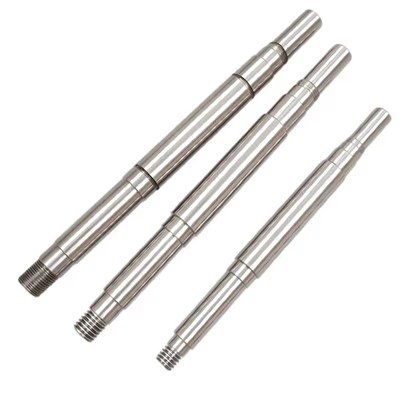

Slurry pump shafts and bearing assemblies serve as the primary power-transmission and rotor-positioning core for heavy-duty centrifugal slurry pumps. Engineered to manage high torque under severe cyclic radial and axial thrust loads, these components maintain precise impeller-to-volute alignment in aggressive mineral processing environments.
Our shafts are precision-forged from high-tensile alloy steels to eliminate deflection, while matched bearing cartridges utilize heavy roller configurations to absorb high-impact shock loads, reducing vibration and extending mechanical seal operational life.
Working Conditions and Pumping Medium
Pumping Medium
Mineral slurries, heavy mineral sands, tailings, coal slurry, bottom ash, and acidic or alkaline chemical sludges with solid concentrations up to 70 percent by weight.
Solid Characteristics
Highly abrasive quartz, iron ore, and copper concentrate particles with Mohs hardness ratings of 6 to 9.
Operating Conditions
Continuous or cyclic heavy-duty running, high vibration frequencies, fluctuating torque, and corrosive liquid immersion.
Construction and Materials
Shaft Metallurgy and Tolerances
Base Material: AISI 4140 or 4340 forged alloy steel (quenched and tempered to deliver high tensile strength and impact toughness).
Corrosive Grade Option: 316 or 420 stainless steel or duplex stainless steel (2205) for highly acidic or chemically active slurries.
Precision Machining: Critical bearing journals and seal fits ground to ISO tolerance standards (m5, k5, or g6) with a surface finish of Ra <= 0.4 micrometer.
Deflection Control: Large shaft diameter-to-length ratio engineered to limit shaft deflection at the impeller face to less than 0.05 mm under maximum radial load.
Bearing Cartridge Configuration

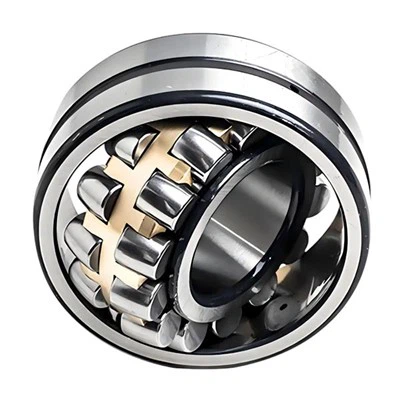

Bearing Selection: Heavy-duty cylindrical roller bearings (managing high radial loads) combined with back-to-back tapered roller or angular contact bearings (absorbing axial thrust loads).
Internal Clearance: C3 or C4 radial clearance classes to accommodate thermal expansion during high-load operating cycles.
Housing and Sealing: HT250 high-strength cast iron housings paired with labyrinth grease seals and PTFE piston-ring retainers to prevent slurry and moisture ingress.
Key Performance Features
Fatigue Resistance
Through-hardening and induction hardening applied to high-stress step-down zones to prevent micro-cracking under heavy dynamic loads.
Low Total Indicated Runout (TIR)
Strict dynamic balancing limits assembly runout to under 0.03 mm, mitigating premature seal face wear.
Thermal Stability
Optimized bearing housing fits eliminate inner or outer ring creep during continuous high-temperature running.
Equipment Interchangeability
Dimensional compliance with standard horizontal slurry pump footprints, permitting direct drop-in replacement without altering existing baseplates or piping.
Applications
-
Mining and Mineral Processing
Primary and secondary mill discharge, cyclone feed pumps, and high-volume tailings lines.
-
Coal Preparation
Heavy media circuits, flotation feed, and slurry transport.
-
Aggregates and Dredging
Sand pumping, gravel transport, and heavy harbor dredging.
-
Power Generation
Bottom ash handling and flue gas desulfurization limestone slurry circuits.
Pump Configuration and Selection
To match or replace existing equipment, cross-reference your pump frame or verify the following operating parameters:
|
Parameter Requirement |
Engineering Specification |
Selection Impact |
|
Pump Frame Size |
Standard horizontal configuration |
Determines shaft overall length, bearing span, and housing dimensions. |
|
Drive Power / Speed |
Up to 500 kW / 1,200 RPM |
Dictates torque transmission capacity and shaft diameter sizing. |
|
Maximum Solid Size |
Up to 100 mm |
Relates directly to shock load frequency transmitted via the impeller. |
|
Operating Temperature |
-20°C to 120°C |
Defines bearing clearance class (C3/C4) and lubrication grade. |
Manufacturing and Quality Control
Machining Operations: CNC multi-axis lathes and heavy-duty cylindrical grinders maintaining tight micron-level tolerances.
Heat Treatment: Controlled atmosphere thermal processing ensuring uniform core hardness across the full shaft length.
Inspection Protocols:
Ultrasonic testing on raw forgings to screen for internal inclusions or subsurface voids.
Magnetic particle inspection on finished shafts to verify surface crack freedom.
Coordinate measuring machine verification for bearing journals, keyways, and thread pitches.
Dynamic balancing verification prior to final preservation and crating.
Maintenance and Spare Parts Support
Assembly Practice
Use induction heaters for bearing mounting. Avoid direct mechanical impacts on bearing rings or shaft ends during installation.
Lubrication Schedule
Grease-lubricated units require relubrication every 250 to 500 operating hours using water-resistant, high-temperature lithium complex grease.
Inventory Recommendation
Maintain a minimum stock ratio of 1 complete shaft and bearing assembly per 5 operating slurry pumps in continuous-duty plants to eliminate unplanned line stoppages.
