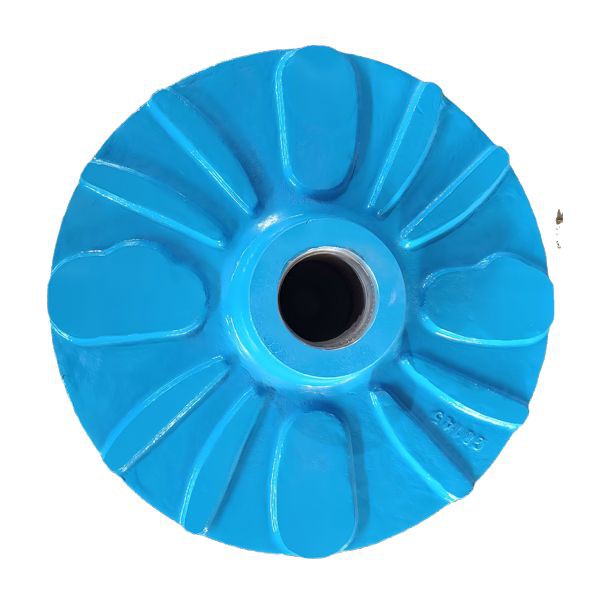

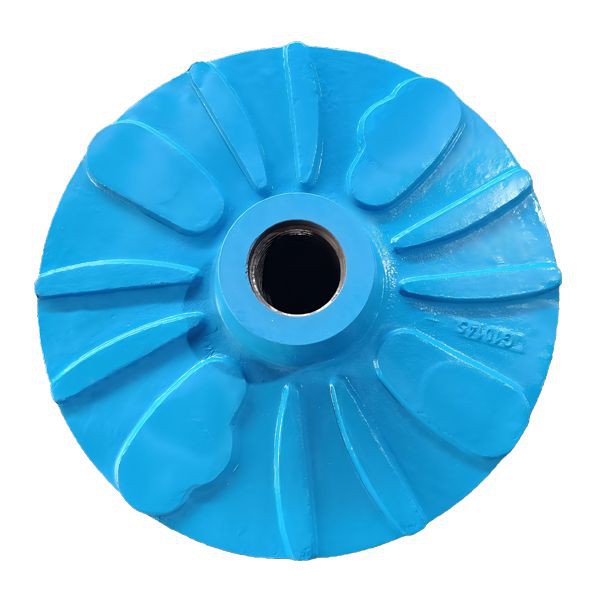

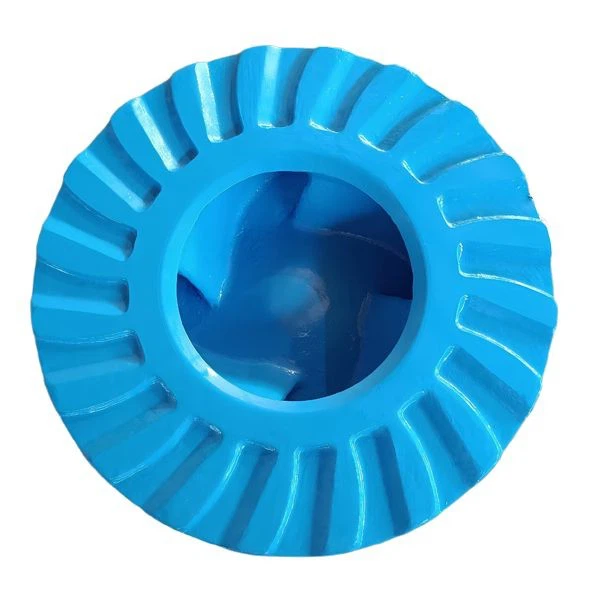

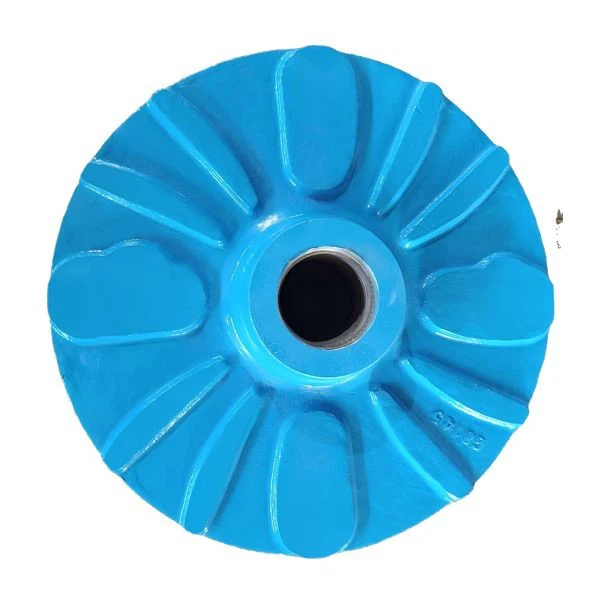

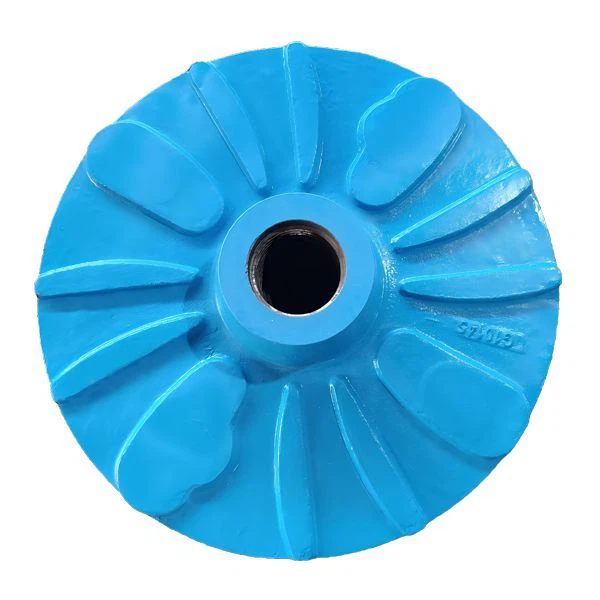

Shijiazhuang Ruite Pump Co., Ltd. is one of the most reliable manufacturers and suppliers of slurry pump impeller in China. Welcome to wholesale durable slurry pump impeller made in China here from our factory. All pumps are with high quality and competitive price.
Key Functions
Energy Conversion
High-speed rotation generates centrifugal force, flinging the slurry from the center toward the periphery to increase pressure and flow velocity.
Medium Conveyance
Guides the slurry to flow along specific channels, ensuring continuous and stable conveyance.
Wear and Clog Resistance
Special structural design resists erosion and wear caused by solid particles and prevents clogging by large particles and fibers.
Main Structural Types
- Closed Impeller: Sealed by front and rear cover plates, with a fully enclosed flow path. Offers high efficiency, excellent hydraulic performance, and stable operation.
- Semi-open Impeller: Features a rear cover plate but no front cover plate, representing a compromise between the two. Balances clog resistance and efficiency.
- Open impeller: The blades have no front cover plate, or no cover plates at all, leaving the flow path open. It offers high flow capacity, is extremely resistant to clogging, and is easy to clean.
Key Features (Major Differences from Clean Water Pump Impellers)
The design of slurry pump impellers must adapt to harsh operating conditions characterized by high wear, strong corrosion, and a high risk of clogging:
Low Speed
Typically operates at lower speeds to reduce wear on flow-passing components and minimize the impact of particles on the impeller.
Thick Blades
Blades are significantly thicker than those in clean water pumps to extend service life in abrasive environments.
Wide Flow Channels
The flow channels (spaces between blades) are wider and shorter to reduce clogging and facilitate the passage of large solid particles.
Fewer blades
Typically 3–5 blades, and sometimes as few as 2 (e.g., swirl impellers), to provide a more unobstructed flow path.
Common Materials
The choice of impeller material directly determines its wear life and corrosion resistance and must be selected based on the physical and chemical properties of the slurry (e.g., hardness, pH).
High-chromium cast iron (A05, A49, KmTBCr26)
A widely used wear-resistant material characterized by high hardness and excellent resistance to abrasive wear. It is classified into martensitic (more wear-resistant) and austenitic (with some toughness) types, suitable for most highly abrasive mineral slurries.
01
Rubber (natural/synthetic)
Used for conveying fine-particle slurries of low to medium concentration without sharp edges, where the medium temperature generally does not exceed 80°C. Its elasticity reduces wear, and it offers good corrosion resistance. Commonly used in mineral processing, coal washing, and similar applications.
02
Polyurethane (PU)
Offers better wear resistance than rubber and good oil resistance, making it suitable for specific applications requiring both wear and oil resistance; however, its temperature resistance is limited (<60°C) .
03
Duplex Stainless Steel (CD4MCu, 2507, etc.)
High strength with excellent corrosion and cavitation resistance; used for highly corrosive slurries such as seawater, those with high chloride ion content, and highly acidic or alkaline environments.
04
Ceramics (e.g., silicon carbide ceramics)
Extremely high hardness and exceptional wear resistance, but highly brittle with poor impact resistance; primarily used in small pumps or as linings.
05
